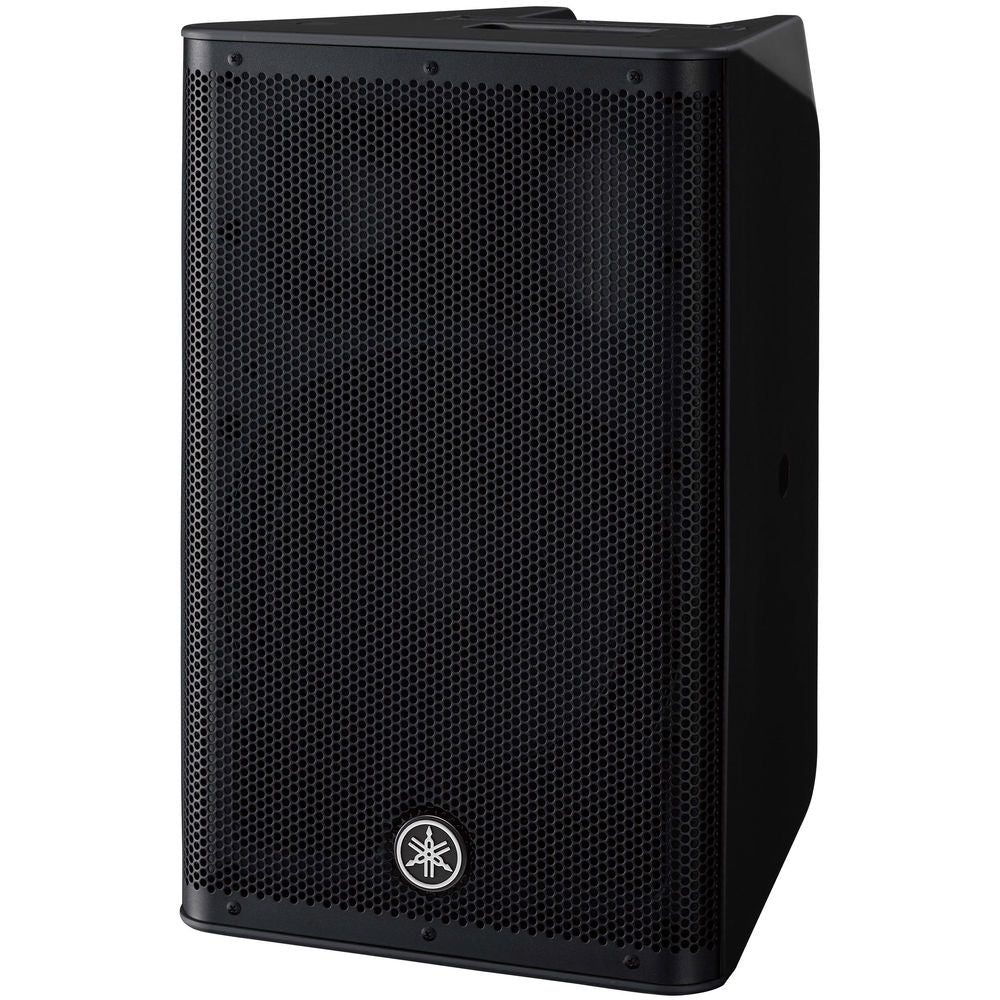

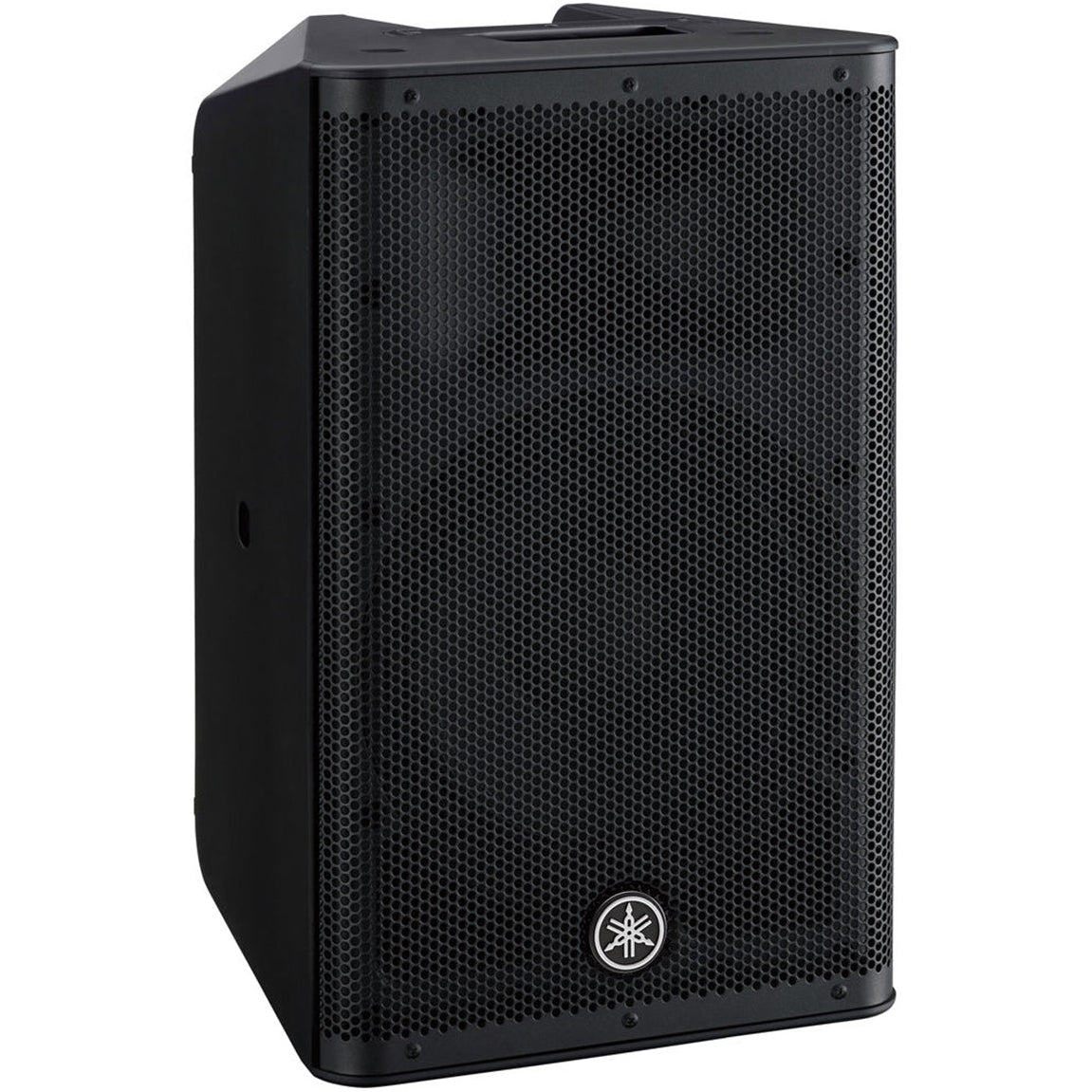

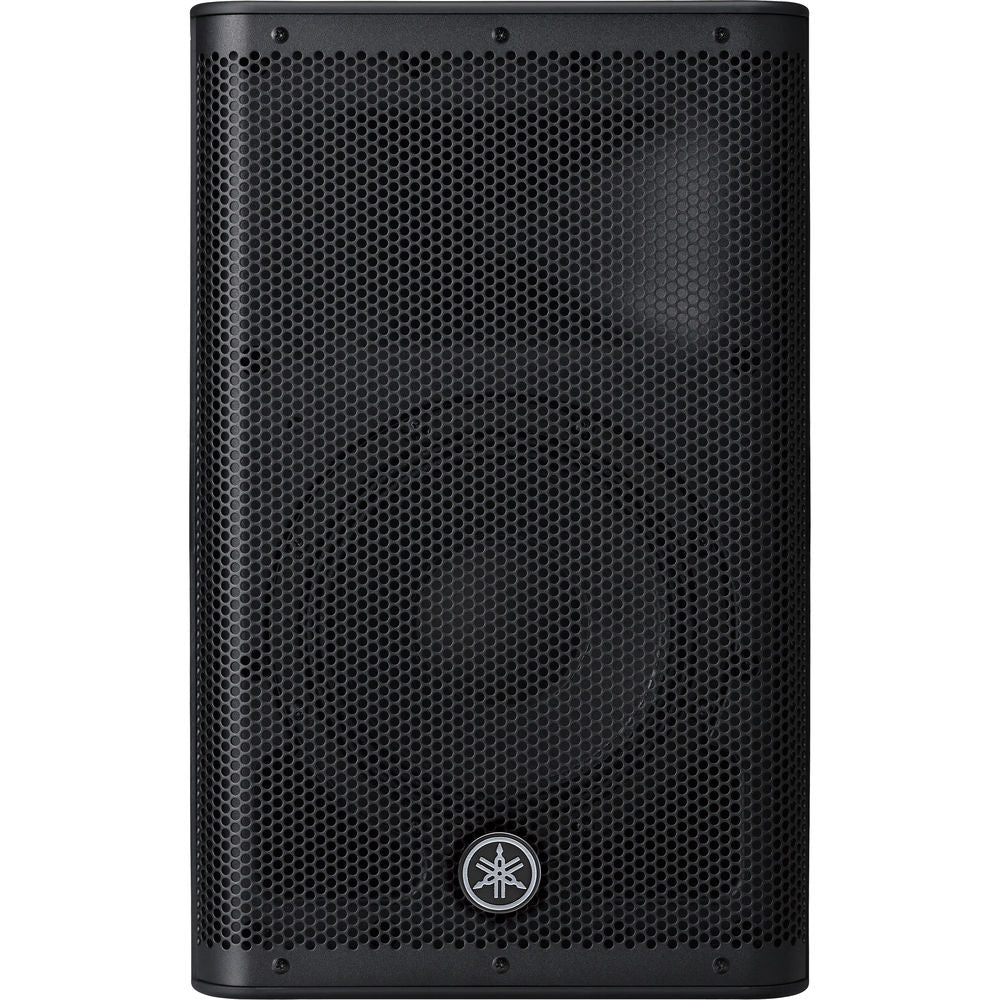

Yamaha DXR10 MK2 – Powerful 10″ Active Speaker with 1100 W Output

The DXR10 MK2 is a versatile active loudspeaker designed for musicians, DJs, and live-sound engineers who need reliable, high-output audio in a durable and portable package. With a powerful Class-D amp, robust driver setup and flexible mounting options, it easily handles both live PA and studio/monitoring use. A top choice for any professional setup.

Key Features

• 10″ low-frequency driver + 1.75″ neodymium compression tweeter: Delivers deep, punchy bass and clear, detailed highs for full-range performance
• 1100 W bi-amped Class-D amplifier: Provides strong output with minimal distortion — enough for small to mid-size venues or rehearsal spaces
• Wide frequency response (56 Hz–20 kHz): Ensures balanced sound across bass, mids and treble for vocals, instruments, and playback
• Maximum SPL up to 132 dB (1 m): High output suitable for live performances, stage monitoring or PA duties
• Onboard DSP with FIR-X linear-phase crossover + D-Contour dynamic control: Offers optimized sound clarity and consistent performance at any volume level
• Multiple inputs and link-through outputs (XLR, jack, RCA): Flexible connectivity for microphones, instruments, mixers or other audio sources

Customer Benefits

With the DXR10 MK2 you get a compact yet powerful speaker that adapts to many roles — from a PA main to a stage monitor or rehearsal room solution. Its robust build, consistent output and broad frequency range mean you can trust it for clear vocals, punchy bass, or full-band playback without needing extra amplification. The integrated DSP and connectivity options make setup simple and flexible even on the fly.

Quick Specs

• Drivers: 10″ LF cone + 1.75″ HF compression tweeter
• Power (peak): 1100 W (LF 950 W / HF 150 W)
• Frequency response: 56 Hz – 20 kHz
• Maximum SPL: 132 dB (measured at 1 m, on-axis)
• Coverage angle: 90° horizontal × 60° vertical
• Enclosure material: ABS plastic (matte black finish)
• Dimensions (W × H × D): 30.5 × 50.2 × 31.0 cm
• Weight: 13.9 kg

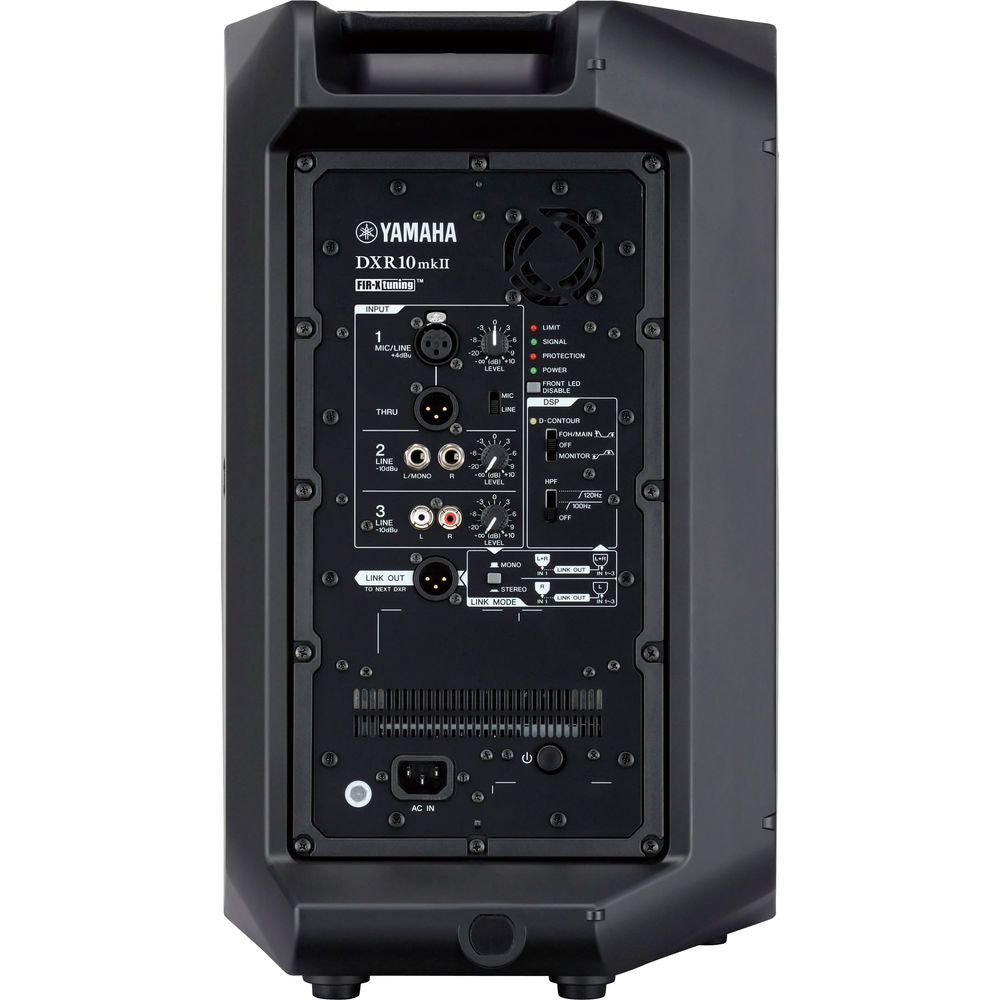

• Inputs/Outputs: 1 × XLR/¼″ combo input, 2 × ¼″ inputs (L/mono, R), dual RCA stereo inputs; XLR link-out & XLR thru outputs
• Mounting: 35 mm pole socket (0° or 7° tilt), rigging points for M8 eyebolts for flying

What’s in the Box

• Yamaha DXR10 MK2 active speaker
• IEC power cable
• Quick-start guide and safety documentation

Use Cases / Ideal For

Ideal for live PA applications, small to medium-size gigs, rehearsal rooms, mobile band setups, DJ events, or as a stage monitor. Also suitable for studio use where strong, full-range playback is needed without a large PA rig.

Pros & Cons

✅ Pros:

• High output and dynamic range in a portable, relatively lightweight cabinet
• Balanced, full-range sound with solid bass and clear highs
• Flexible connectivity and mounting options — pole, fly, floor monitor
• Reliable onboard DSP and dynamic control for consistent performance

⚠️ Cons:

• As a single 10″ speaker — bass may not reach deep subs without a dedicated subwoofer
• No onboard effects or EQ tailoring — relies on external mixing for advanced sound shaping

The Yamaha DXR10 MK2 stands out as a powerful, versatile active speaker that combines portability, robust build quality and professional-level sound output — an excellent choice for live sound, rehearsals or mobile setups.
